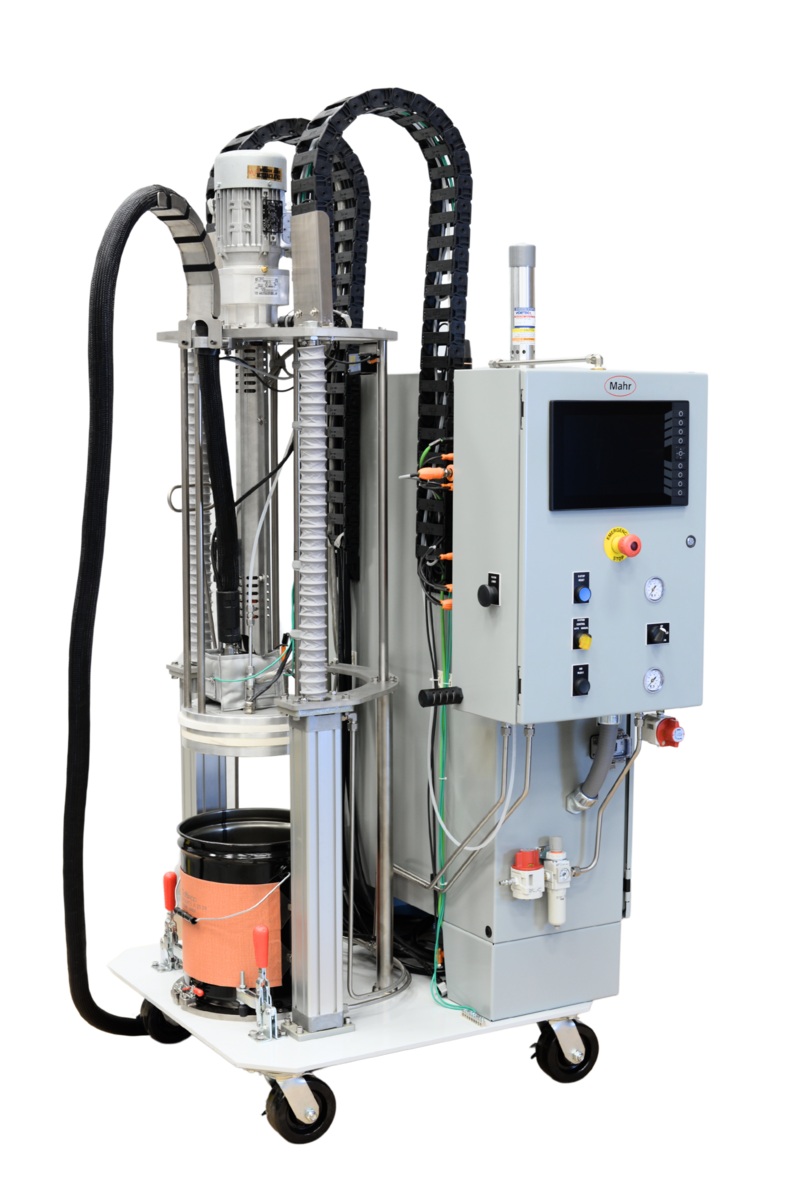

HV Platen System
Metering system for viscosities over 50 Pas that allows metering directly out of the container
HV High ViscositySubmersible Pump

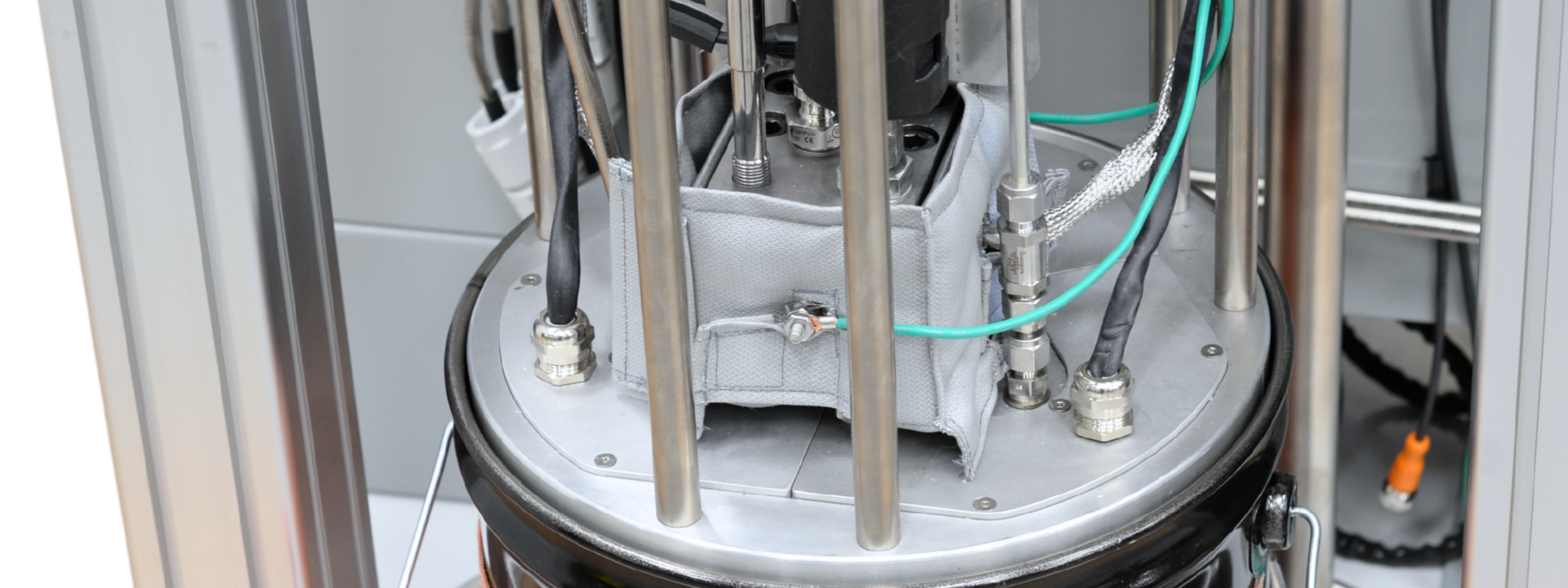

Mahr Drum Metering Pumps are designed for precise metering of products with varying viscosities, from thin to thick. Each system uses a gear metering pump, force-fed by a patented impeller design, ensuring metering accuracy of ±1%. The impeller helps minimize cavitation within the pump. The platen rides on the product surface, descending to the bottom of the barrel, and can be heated. A rubber gasket on the platen ensures complete cleaning of the container sides. Mahr Drum Pumps also prevent product contamination from air, gas, and moisture.
- viscosities up to 1,500,000 cP
- efficiently meters product to the drum's bottom
- metering accuracy of ±1%
- available for 5 gal pail or 55 gal drum
With a Mahr drum pump, no feed pump is required, as it is mounted to a pressurized platen, eliminating the need for costly additional equipment. The drum metering pump provides high accuracy, with or without additional controls.
Versatile, modular construction:
MarDrum HV can be sized for pilot plants or higher-volume full production facilities. This machine can be used independently or coupled with any of Mahr’s other machine to create a fully custom system tailored for the process requirements. Complete metering systems are available, including recirculation loops, flow meter readouts, PLC controls, data logging, touch screen interfaces, and mixing systems.
All products are metered and continuously flow-monitored in recirculation mode, ensuring readiness for metered or continuous dispensing on demand. The recirculation valves switch seamlessly to dispensing mode, enabling immediate delivery to the downstream process.
| Emission range | 0.1 - 10 litres/min |
|---|---|
| Mixing ratio | Infinitely variable |
| Compatible Container Size | 5 gal pail or 55 gal drum |
| Conveying element | Gear metering pump |
| Remote servicing | Capability integrated |
| Container filling | Manual |
| Operation via colour touch screen panel | Screen size 7-15" |
| Pump range | 0.6 - 100 cc/rev |
| Max Viscosity | 1,500,000 cP |
| Gearmotor | 1-4hp, 1800rpm, 20:1 |
| Operating voltage | 230/460 VAC, 50-60Hz, 3 phase |
| Air pressure | 6 bar (87 psi) |
| Weight | varies |
Mass flow meters (Gear)
Pressure Transducer
Higher viscosity feed impeller
Special voltages
Motor control
Flow feedback control
