High-quality metrology for quality control in the measuring room, production, incoming goods and development.
Zahnradpumpen & Misch- und Dosiermaschinen mit höchster Genauigkeit für die Verarbeitung von Flüssigkeiten und Pasten.
Hochgenaue Kugelführungen für spielfreie Hub- und Drehbewegungen beim Einsatz im Maschinen- und Vorrichtungsbau.
Einsatzbereiche von Mahr Maschinen
Proven use for decades to spin finest yarn: planetary spinning pumps are the heart of every synthetic fibre spinning plant.
Spin finish dosing pumps do not only meter preparation fluids. They can also be used for the consistent dosing of water, perfume or even oils.
There are almost no limits to the use as a dosing pump in various industries. As a spinning pump it is only used for special applications.
Predominantly used in spinning and adhesives technology, they offer the possibility of realizing two flow rates with minimal space and one motor drive only.
Product bores which are on both sides of the pump body allow the pump to be integrated directly into the production line.
They can be used for all applications. Direct installation in the product line does not require an additional clamping block.
Discharge pumps ensure gentle discharge of polymer melts with low product shear. Booster pumps ensure a defined process pressure for downstream tools such as dies or extruders.
For highly accurate, low-pulsation dosing of liquids. The gear metering pumps achieve an efficient performance even at low viscosity and back pressure.
Paint metering pumps can also be used for robot applications. Even at short flushing cycles these pumps show excellent flushing results.
Solutions for material preparation, conditioning and supply to the meter mix dispense machine.
The mixing takes place exclusively through the flow movement of the components and the geometry of the mixing element.
The components are mixed by a rotating element in a mixing chamber.
The mixing takes place through the flow movement of the components in cooperation with the geometry and rotation of the mixing element.
Static Mixing Heads
The mixing takes place exclusively through the flow movement of the components and the geometry of the mixing element. Output and mixing quality depend heavily on viscosity of components when using static mixers.

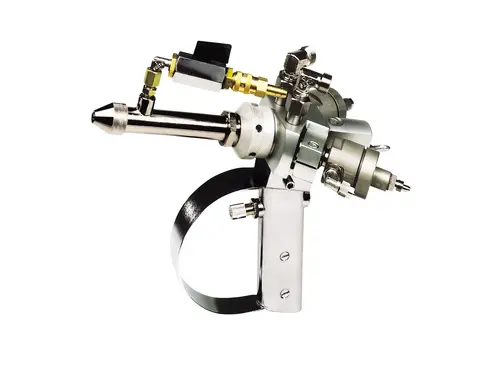

MarMax SP 37
- 2 material ports for casting or spraying and 1flushing port
- pneumatically controlled material valves
- handle with electronic push button
- manual flushing valve
- material: aluminium or stainless steel

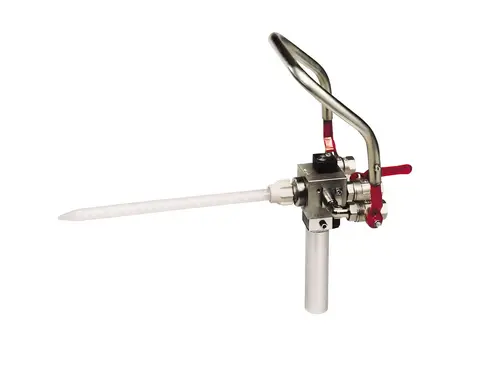

MarMax GSP 38 | manual
- 2 material ports for casting or spraying and 1flushing port
- ball taps with handle
- manual flushing valve
- operation via hand lever
- output: 0.5 up to 6 l/min
- material: aluminium or stainless steel

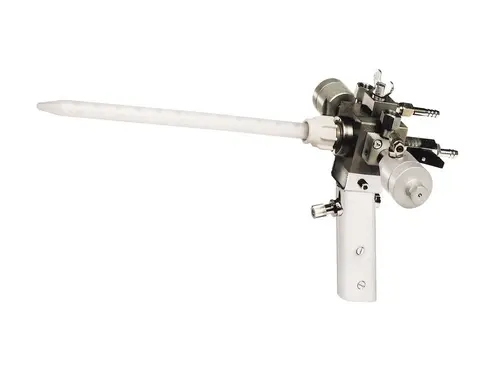

MarMax GSP 38 | automatic
- 2 material ports for casting or spraying and 1 flushing port
- pneumatically controlled material valves
- long recirculation available
- handle with electric push button
- manual or automatic flushing valve
- output: 0.5 up to 6 l/min
- material: aluminium or stainless steel

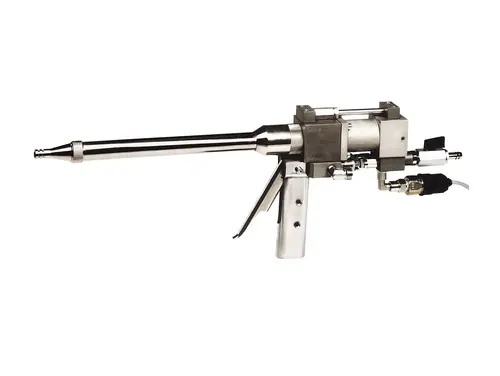

MarMax SP 30
- 2 material ports for spraying
- hand operated lever
- manual flushing valve
- output: 1 up to 6 l/min
- material: aluminium or stainless steel
MarMax GSP 33
- 2 material ports for casting or spraying and 1 flushing port
- pneumatically controlled material valves
- handle with electric push button
- automatic flushing valves
- output: 0.5 up to 4 l/min
- material: aluminium or stainless steel
MarMax GSP 35
- 4 material ports for casting or spraying and 2 air purge/solvent flushing ports
- pneumatically controlled material valves
- handle with electric push button available
- automatic flushing valves
- output: 0.5 up to 4 l/min
- material: aluminium or stainless steel

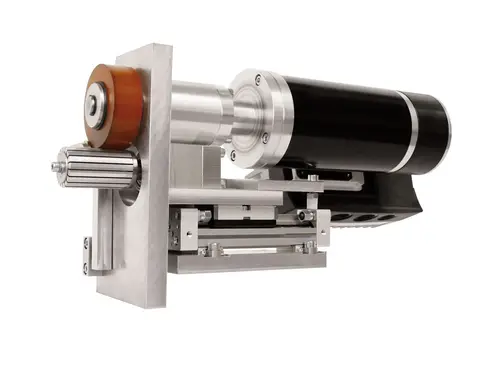

Fibre optic cutting unit
- Glass fibre yarn draw-in by electric motor drive
- knife roller pneumatically adjustable to two glass fibre cut-off lengths
- Contact pressure of the knife roller also adjustable
- quick mounting and dismounting of the suction device on the mixing head GSP 35 by means of a clamping lever
