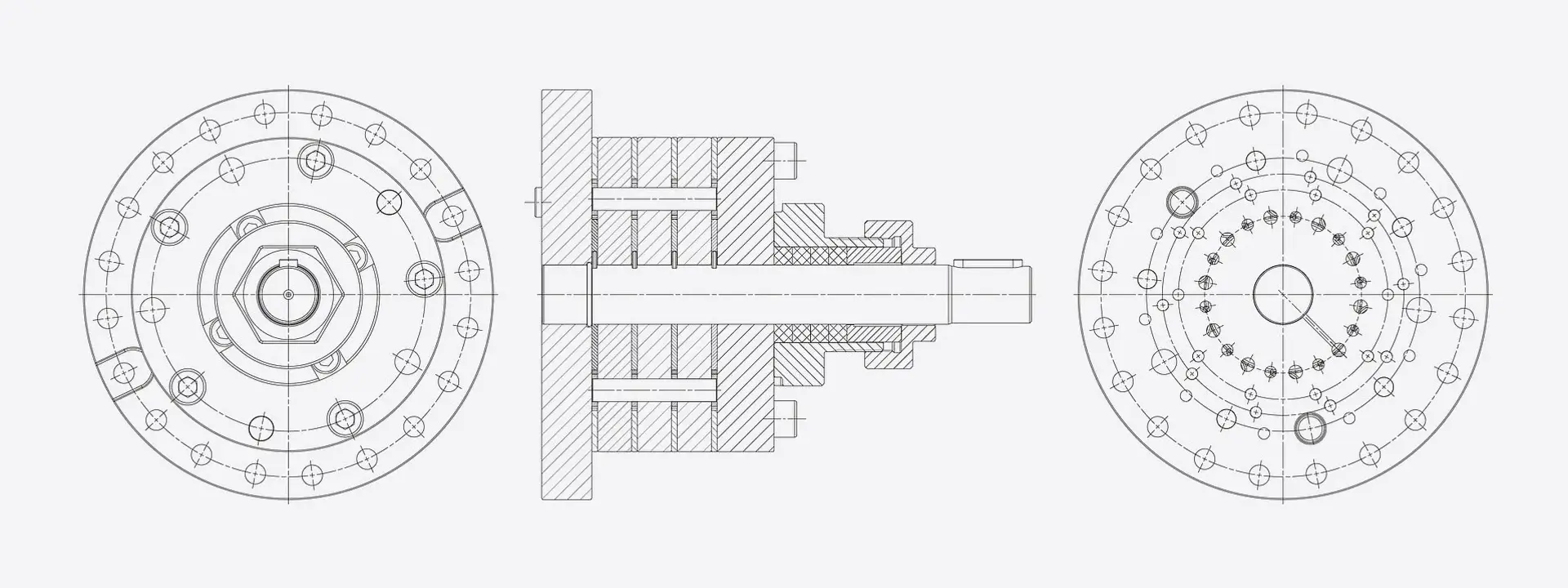

MarSpin – Planetary Spinning Pumps
Planetary spinning pumps – representing the heart of a spinning plant. They are used in large quantities. Tight production tolerances of the pumps, reliability and long life time are the key words for a high quality yarn and customer satisfaction. Feinpruef spinning pumps of Mahr Metering Systems do guarantee to withstand toughest process conditions to finally spin and deliver a first class quality yarn to the winder.
The special feature of planetary spinning pumps is the dosing of a material flow into up to 64 equal individual streams. These pumps are not only used for production of many different synthetic fibre and yarn, of that, for example, micro fibre textiles, tights, spandex, protective clothing and even astronautic overalls will be made. Planetary spinning pumps are also used for applications of dosing glue & adhesives and almost all kind of fluids.
| Dimensions ø mm | 90 | 100 | 120 | 130 | 138 | 146 | 160 | 180 |
|---|---|---|---|---|---|---|---|---|
| Flow cc/rev | 0.3 - 4.8 | 0.1 - 4.8 | 0.2 - 6 | 6 - 12 | 0.3 - 4.8 | 0.3 - 6 | 10 - 30 | 0.3 - 2.4 |
| Number of outlets | 3 - 8 | 2 - 8 | 2 - 12 | 2 - 16 | 8 - 16 | 8 - 32 | 2 - 4 | 24 - 64 |
| Counter pressure bar (max) | 400 | 400 | 400 | 400 | 400 | 400 | 500 | 300 |
| Material | Material properties | Field of application | Permissible operating temperature max. | Permissible cleaning temperature max. |
|---|---|---|---|---|
| F16 | high tungsten, vanadium and chromium alloyed high speed steel |
| 450°C 840°F | 550°C 1020°C |
| F24 | molybdenum, tungsten, vanadium and chromium alloyed high speed steel |
| 450°C 840°F | 550°C 1020°F |
| Hastelloy | acid-resistant nickel alloy, additions of molybdenum and chromium |
| 250°C 480°F | 300°C 570°F |
| N19 | high chromium alloyed stainless steel, additions of molybdenum and vanadium |
| 180°C 356°F | 200°C 392°F |
| N31 | high chromium alloyed stainless steel, additions of molybdenum and vanadium Can be used in combination with Stellite S2 |
| 250°C 480°F | 300°C 570°F |
| Stellite S2 | cobalt-based with high chromium content and additions of tungsten and nickel Can be used in combination with N31 |
| 150°C an depending on material combination | 300°C an depending on material combination |
| N33 | high chromium alloyed stainless steel, additions of nickel, molybdenum and manganese |
| 200°C 392°F | 220°C 428°F |
| N33-4 | high chromium alloyed stainless steel, additions of nickel, molybdenum and manganese |
| 350°C 665°F | 450°C 840°F |
The pump drive connection is available in following types:
- shaft type
- plug type
Gear pump with motor
- Base plate with mounting block
- Coupling
- curved tooth coupling
- cardan shafts
- all-steel coupling
- magnetic coupling
- Motor
- asynchronous gear motor
- servomotor / servo gear motor
- synchronous gear motor
The drive units are designed according to the operating conditions.
Coating
Coating technologies take a significant key position in the development of new products. The various coating technologies enlarge the application possibilities of the base materials. Furthermore, a coating reduces friction, wear and corrosion. In principle, all named materials can be coated depending on the specification.
Diamond-Like Carbon (DLC) improves the properties:
- high surface hardness
- high wear protection
- smaller coefficient of friction
- better corrosion reduction to aggressive media
- higher chemical resistance / stability
- non-stick effect (reduced adhesion of polymers and other materials)
- high temperature firmness to 250°C
- excellent accuracy to size (no change of the high discharge accuracies)
- high economic efficiency through longer endurance and improvement of technological properties
- biocompatible, allows the use in the food industry and in the medical field
Sealing systems for the gear pumps
- stuffing box seal
- rotary shaft seal
- labyrinth seal
- mechanical seal
- magnetic coupling
Atex Directive 2014/34/EU
A version according to the Atex directive is available for the pump as well as for the drive.
Heating or cooling for the gear pumps Heating or cooling can be provided electrically as well as by the thermal fluid.
Inquiry Specification
Gear Metering Pumps
Please fill out this form – with this data we will select the suitable gear pump.
Inquiry Specification
Drive Unit
Please fill out this form – with this data we will select the suitable drive for the pump.
The entire pump portfolio cannot be completely listed due to the large number of available designs. The same applies to the fields of application. Please contact us!
