The challenges in thechemical and process industries
In the chemical industry, precision is not just a question of efficiency—it determines absolute process reliability, quality, and cost-effectiveness.
However, conventional pump technologies quickly reach their limits, especially when dealing with aggressive, corrosive, or abrasive media, high temperatures, or extreme viscosities.
Problems such as pulsating delivery, inaccurate dosing quantities, leaks, increased maintenance requirements, or inadequate sealing concepts often arise. In demanding applications, such as the feeding of reactive chemicals or the pumping of temperature-sensitive reaction media, a conventional pump is often not reliable enough to keep the process stable.
Gear pumps from Mahr Metering Systems are specially designed for the extreme demands of the chemical and process industries and offer a solution based on decades of experience in high-pressure, high-temperature, and high-viscosity applications. The design, material selection, and coating technologies have been continuously refined to ensure that the pumps deliver precise, low-pulsation delivery and maximum process reliability—even with particularly difficult media and conditions.

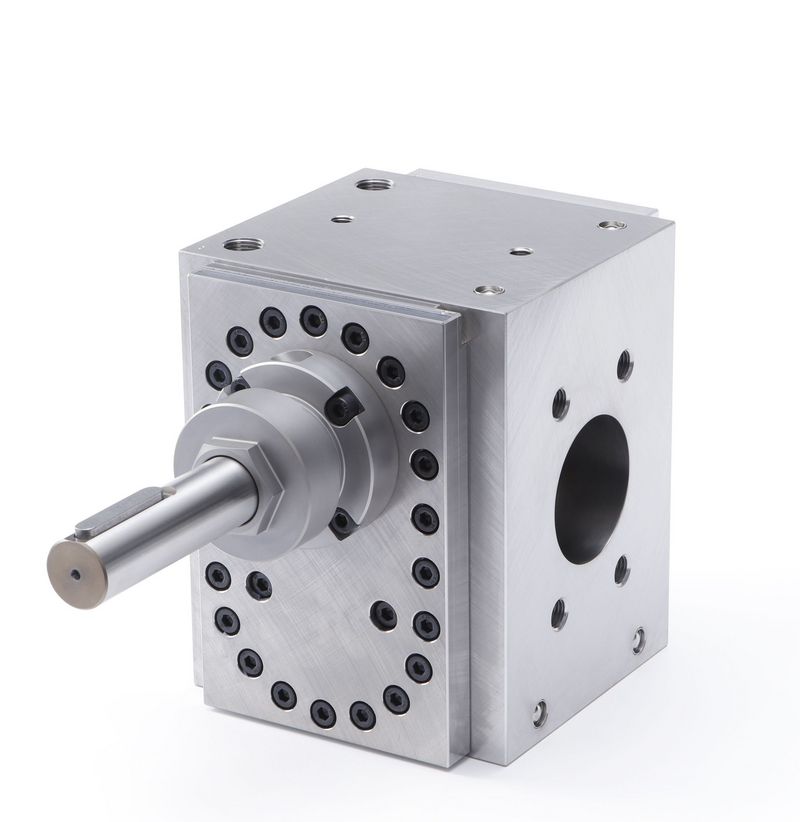

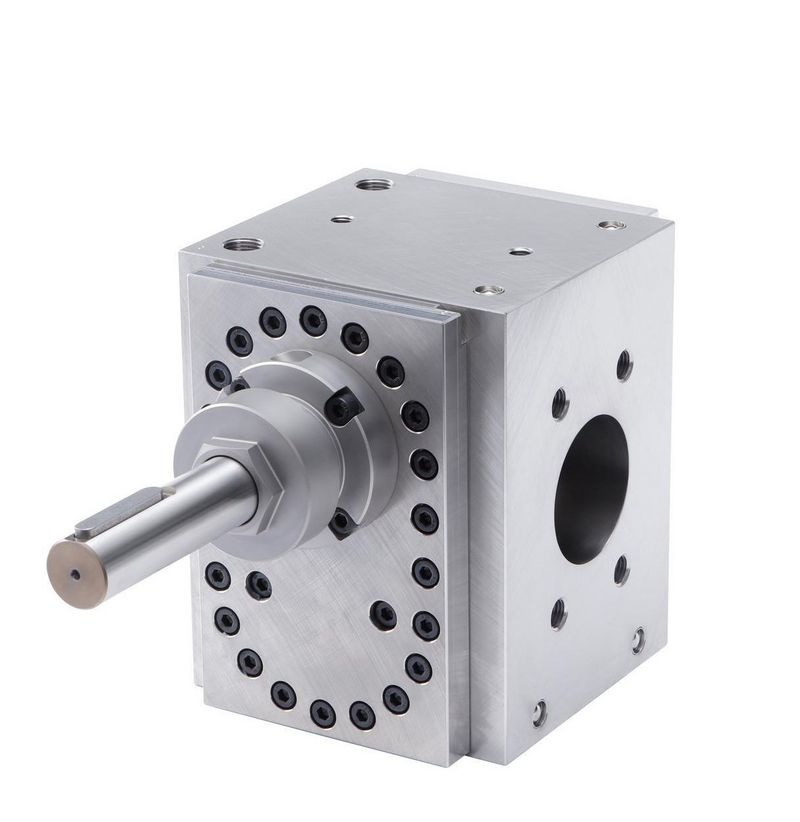

Our solution: Mahr Chemical Pumps
Thanks to a wide range of special materials and coatings, application-specific bearing materials, and proven sealing systems, the pumps are also suitable for toxic, corrosive, or abrasive liquids. Their modular design allows them to be perfectly adapted to a wide variety of process environments.
MarChem gear pumps thus offer a reliable, precise, and economical solution for demanding chemical applications.
Technical advantages of gear metering pumps for the chemical industry
- Metering accuracy: Precise delivery rates with minimal pulsation
- Chemical resistance: Wide selection of special steels, bearing materials, and coatings for aggressive, corrosive, or abrasive media
- Secure sealing: Various sealing systems tailored to the application
- Low maintenance requirements: Modular design for minimal downtime
- ATEX certification available: For potentially explosive atmospheres
- Energy efficiency: Speed control of energy-saving motors via frequency converters to adapt to process requirement
| Pump type per size | 5 and 10 cc/rev 20 and 50 cc/rev 120 and 200 cc/rev 350 and 500 cc/rev 750 and 1500 cc/rev | ||
| Viscosity mPas | 1 - 1,000,000 mPas | ||
| Output pressure | 120 bar standard (depending on viscosity, higher on request) | ||
| Operating temperature | up to 300 °C | ||
| Material | in correlation to the metered liquids, a variety of specialised steels, special materials and various coatings are available | ||
| Medium to be pumped | various liquids, including corrosive and abrasive media (on request) | ||
Gear metering pump with drive unit
- Base plate with mounting block
- Coupling
- curved tooth coupling
- cardan shaft
- all-steel coupling
- magnetic coupling
- Motor
- asynchronous gear motor
- servomotor / servo gear motor
- synchronous geared motor
The drive units are designed according to the operating conditions.
Sealing systems for the gear pumps
- stuffing box seal
- rotary seal
- single / double mechanical seal
- magnetic coupling
ATEX Directive 2014/34/EU
A version according to the Atex directive is available for the pump as well as for the drive.
Tempering of gear pump
Electrical heating, liquid or steam heating
Further features The dosing pumps can be supplied with additional equipment according to requirements:
- speed control by inverter
- pressure monitoring
- temperature monitoring
- flow monitoring
- communication to other machines or systems
Frequently Asked Questions
Technical answers to frequently asked questions about metering solutions for the chemical industry
They offer high metering accuracy, low-pulsation delivery, chemical resistance of materials, and high process stability. This makes them ideal for applications involving aggressive chemicals, high temperatures, pressure fluctuations, and demanding metering requirements.
Gear metering pumps are suitable for a wide range of chemical media, including acids, alkalis, solvents, polymers, resins, additives, and highly viscous liquids. Thanks to the use of special materials, they are also suitable for many other corrosive and abrasive substances.
Low-pulsation dosing means uniform, continuous pumping without pressure fluctuations. This is particularly important for chemical processes, as it keeps mixing ratios stable, makes reaction processes controllable, and increases production quality and process reliability.
Compared to diaphragm or hose pumps, gear metering pumps offer higher metering accuracy, pulsation-free delivery, better controllability, higher process stability, and a longer service life in chemically demanding applications.
