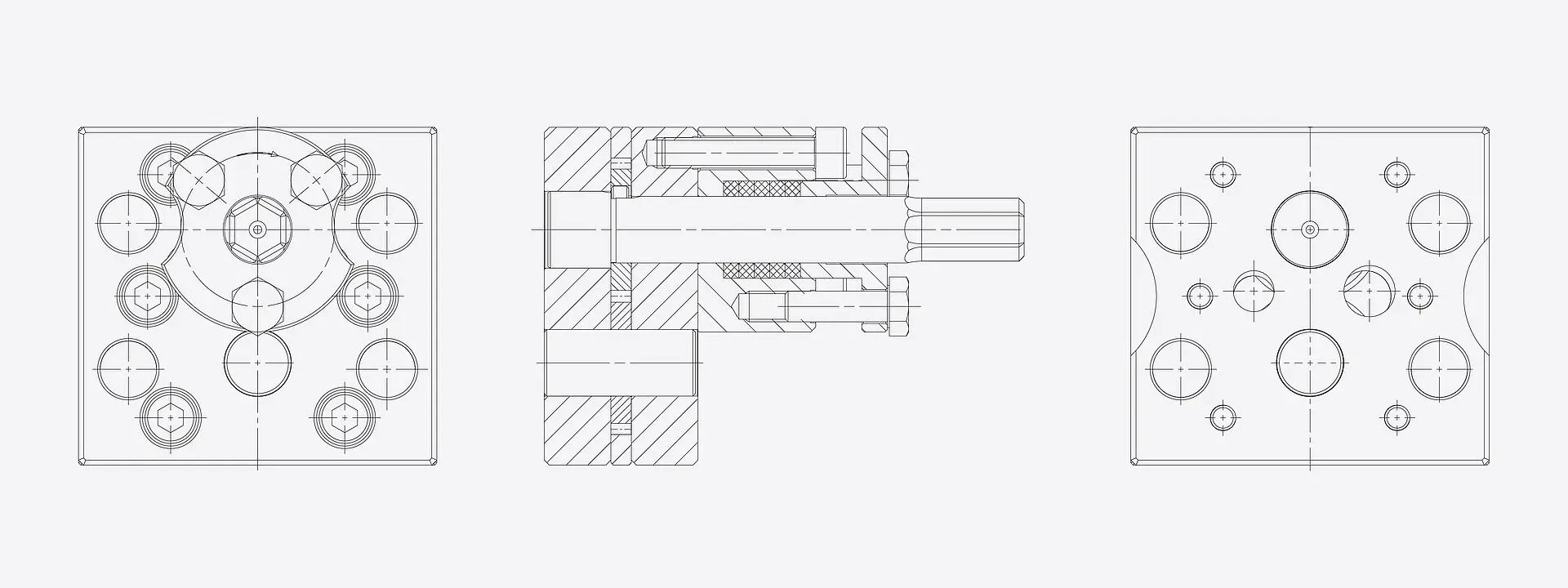

MarSpin – Gear Metering Pumps with Block Mounting

This range of gear metering pumps was originally designed for the spinning of finest filaments – the typical first generation spinning pump. As a "real" spinning pump nowadays this design is only used for very special applications like producing of aramide and carbon fibres. For all the other kinds of industries and applications this design is typically used as a standard metering pump with almost no limits.

Dimensions  mm66x7080x122155x200
Flow cc/rev0,1-1010-7070-250
MaterialMaterial propertiesField of applicationPermissible operating temperature max.Permissible cleaning temperature max.
E20high chromium alloyed high grade tool steel with additions of vanadium, tungsten and molybdenum
  • for larger flow rates from 30 cc/rev
400°C
750°F
500°C
930°F
F16high tungsten, vanadium and chromium alloyed high speed steel
  • extremely high wear resistant
  • exclusively produced made for Mahr
450°C
840°F
550°C
1020°F
F24molybdenum, tungsten, vanadium and chromiumalloyed high speed steel
  • highly wear-resistant
450°C
840°F
550°C
1020°F
Hastelloyacid-resistant nickel alloy, additions of molybdenum and chromium
  • very good resistance especially to mineral and organic acids
250°C
480°F
300°C
570°F
N17high chromium alloyed stainless steel, additions of nickel, molybdenum and titanium
  • good resistance
  • good weldability
  • suitable for higher temperatures
  • suitable in food and pharmaceutical industry, apparatus and pipeline construction
300°C

400°C
N19high chromium alloyed stainless steel, additions of molybdenum and vanadium
  • optimal combination of resistance to wear and corrosion
  • for use with chemically aggressive media
180°C
356°F
200°C
392°F
N31High chromium alloyed stainless steel, additions of molybdenum and vanadium
Can be used in combination with Stellite S2.
  • Very good resistance and polishability
  • suitable in food and pharmaceutical industries
250°C
480°F
300°C
570°F
Stellite S2cobalt-based alloy with high chromium content and additions of tungsten and nickel
Can be used in combination with N31.
  • highly wear resistant
  • corrosion resistant
150°C
depending on material combination

300°C
depending on material combination
N33High chromium alloyed stainless steel, additions of nickel, molybdenum and manganese
  • high degree of hardness with excellent corrosion resistance
  • for highly stressed components
200°C
392°F
220°C
428°F
N33-4High chromium alloyed stainless steel, additives of nickel, molybdenum and manganese

  • high degree of hardness with good corrosion resistance
  • suitable for higher temperatures
350°C
665°F
450°C
840°F

The pump drive connection is available in following types:

  • shaft types
  • plug type

Gear pump with motor

  • Base plate with mounting block
  • Coupling
    • curved tooth coupling
    • cardan shaft
    • all-steel coupling
    • magnetic coupling
  • Motor
    • asynchronous gear motor
    • servomotor / servo gear motor
    • synchronous gear motor

The drive units are designed according to the operating conditions.

Coating

Coating technologies take a significant key position in the development of new products. The various coating technologies enlarge the application possibilities of the base materials. Furthermore, a coating reduces friction, wear and corrosion. In principle, all named materials can be coated depending on the specification.

Diamond-Like Carbon (DLC) improves the properties:

  • high surface hardness
  • high wear protection
  • smaller coefficient of friction
  • better corrosion reduction to aggressive media
  • higher chemical resistance / stability
  • non-stick effect (reduced adhesion of polymers and other materials)
  • high temperature firmness to 250°C
  • excellent accuracy to size (no change of the high discharge accuracies)
  • high economic efficiency through longer endurance and improvement of technological properties
  • biocompatible, allows the use in the food industry and in the medical field



Sealing systems for the gear pumps

  • stuffing box seal
  • rotary shaft seal
  • labyrinth sealing
  • mechanical seal
  • magnetic coupling

Atex Directive

  • II 2G Ex h T6...T1 Gb
  • II 2G Ex h T6...T2 Gb

A version according to the Atex directive is available for the pump as well as for the drive.

Heating or cooling for the gear pump Heating or cooling can be provided electrically as well as by the thermal fluid.

Brochure

Gear Metering Pumps

Download

Form

Inquiry Specification
Gear Metering Pumps

Please fill out this form – with this data we will select the suitable gear pump.

Download

Technical Information

Pump Material of Construction

Download

Form

Inquiry Specification
Drive Unit

Please fill out this form – with this data we will select the suitable drive for the pump.

Download

Mahr | Note

The entire pump portfolio cannot be completely listed due to the large number of available designs. The same applies to the fields of application. Please contact us!
